Applications
Motorsport
- Race Set up
- Hybrid and race strategy
- Driver’s Training
- Car development
Vehicle Dynamics
- Chassis Tuning (Vehicle Dynamic Targets)
- Tire development
- Driver’s Training
- Control System Design (SIL & HIL)
Ride & Comfort
- Chassis Tuning (Ride & Comfort Targets)
- A to B comparison
- Off-line results (from experimental test and/or multibody simulations) playback
ADAS & AV
- ADAS development & verification (AEB, LKA, ACC, …)
- Dangerous maneuvers simulation
- AV algorithms development & verification
- HMI studies
- Driver’s Distraction and monitoring
- Human – systems interactions
Benefits

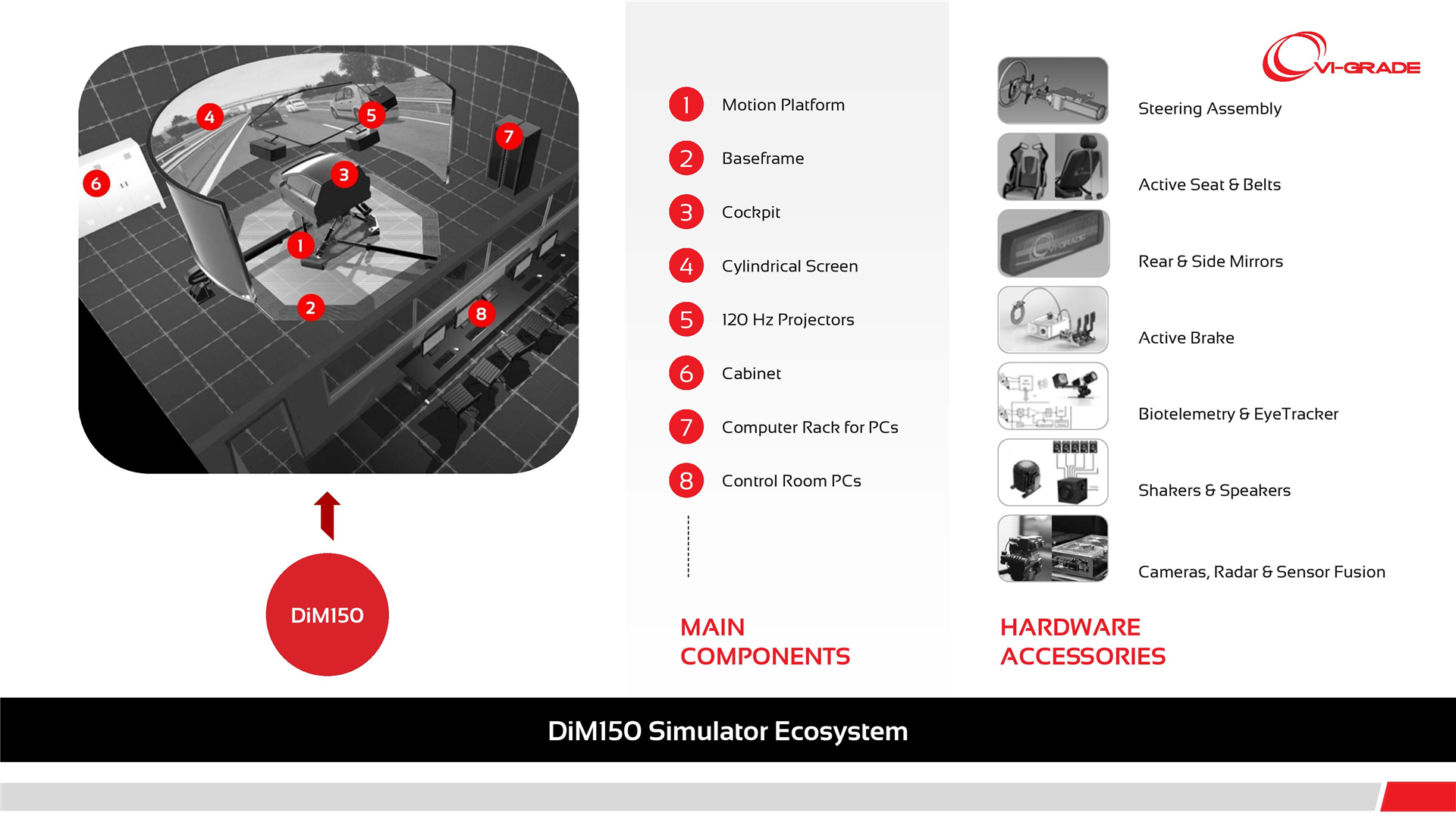

DiM®150 is already successfully installed at leading automotive OEMs, motorsport teams and engineering service providers. It is an award winning driving simulator for integrated active / passive vehicle dynamics and ride development, as well as for ADAS and NVH applications. Thanks to the architecture, the DiM captures low and high frequency performance for combined dynamics.
- Standard workspace
- Typical steady-state accelerations (tested on several situations by many expert users)
- Good immersion (standard 7m cylindrical screen)
- Class leading velocity and acceleration performances

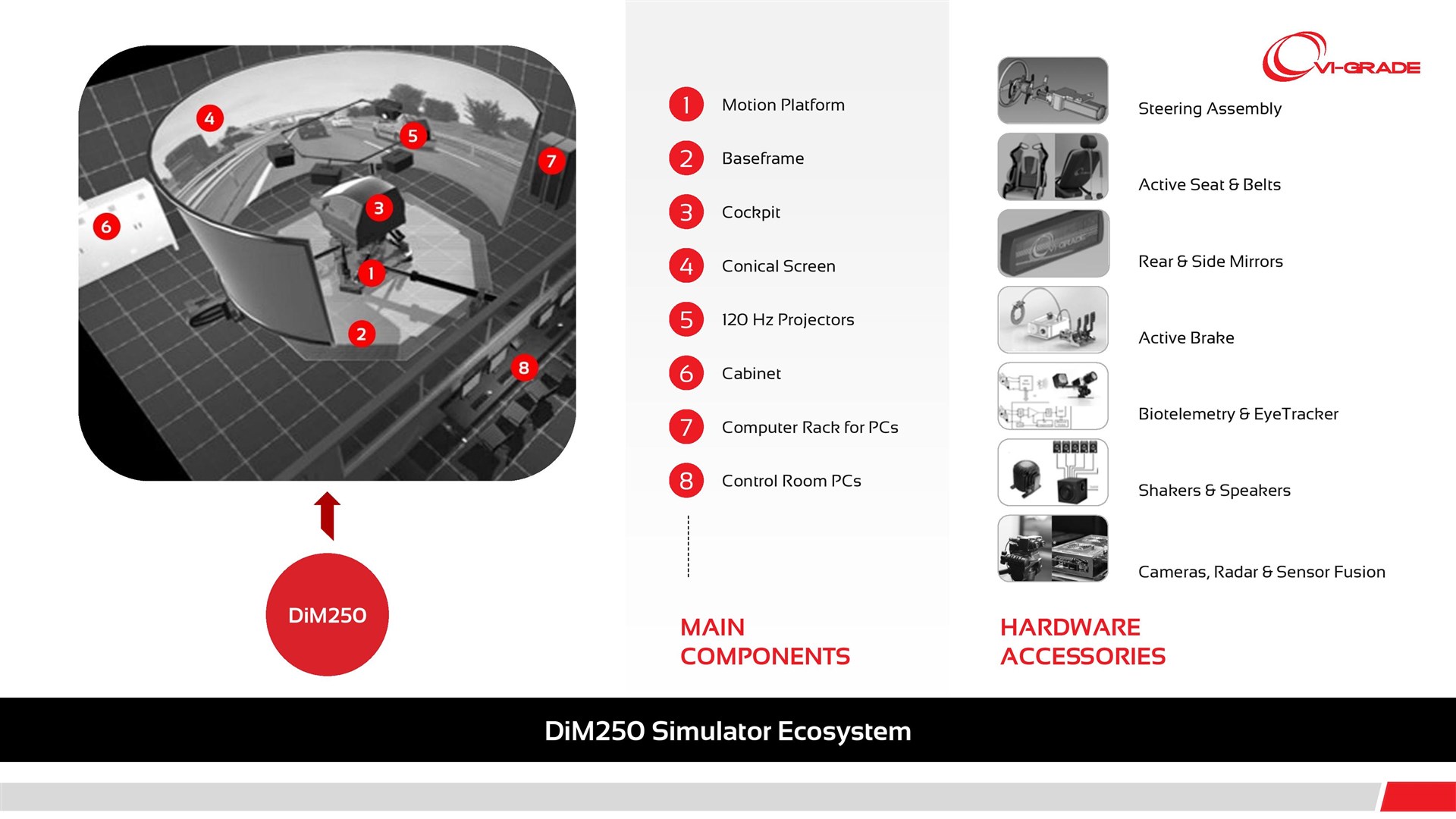

DiM®250 features the same architecture and performance as DiM® 150, however, with extended linear actuators for increased travel of the tripod. This motion platform is suitable for applications which require longer time exposure to steady state accelerations. The longer time exposure corresponds to larger platform movement to cover the driver reaction time. DiM® 250 still comes with fixed screen as the DiM® 150 ensuring the best possible visual immersion quality.
- More workspace (longer tripod actuators)
- Longer steady-state accelerations (better acceptance of driving simulator by unexperienced users)
- Better immersion (bigger 8/9m conical screen)
- Same class leading velocity and acceleration performances on bigger workspace

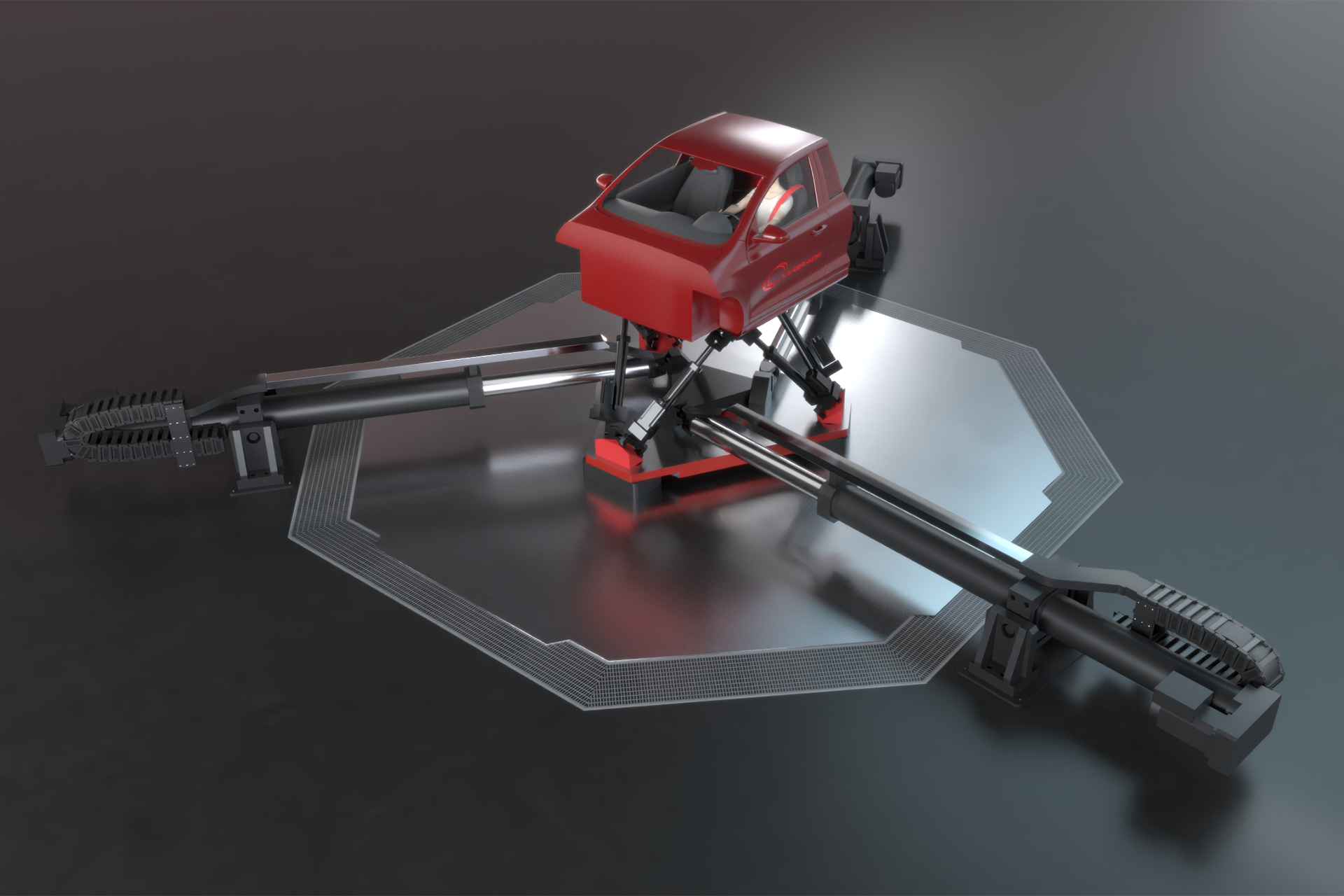

- Even more workspace (freely adjustable to customer needs thanks to cable-based design)
- Longer exposure to steady state acceleration (capable of lane change at 1:1 motion cueing)
- Better immersion through improved motion envelope shape under combined loading
- Much larger yaw range while maintaining velocity and acceleration performances on an even larger workspace
- Bigger heave for a better vertical feel
- Active vibration control through a patented Inertia Compensation System
