VI-BikeRealTime is a modeling, post processing and real-time analysis environment for motorcycle models which allows designers, analysts and track engineers to take into account effects from the motorcycle itself as well as from the road profile and the rider.
Applications
Support for different hardware-in-the-loop environments
- Easy-to-use interface with MATLAB Simulink for software-in-the-loop studies
- Maximum performance event to predict vehicle limit speed along the desired 2D or 3D track

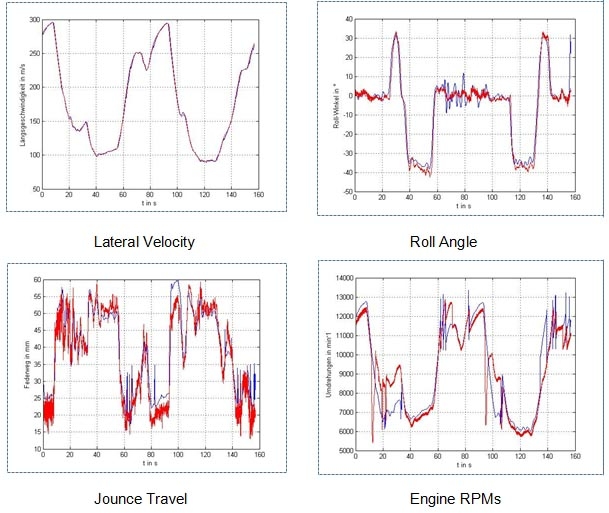

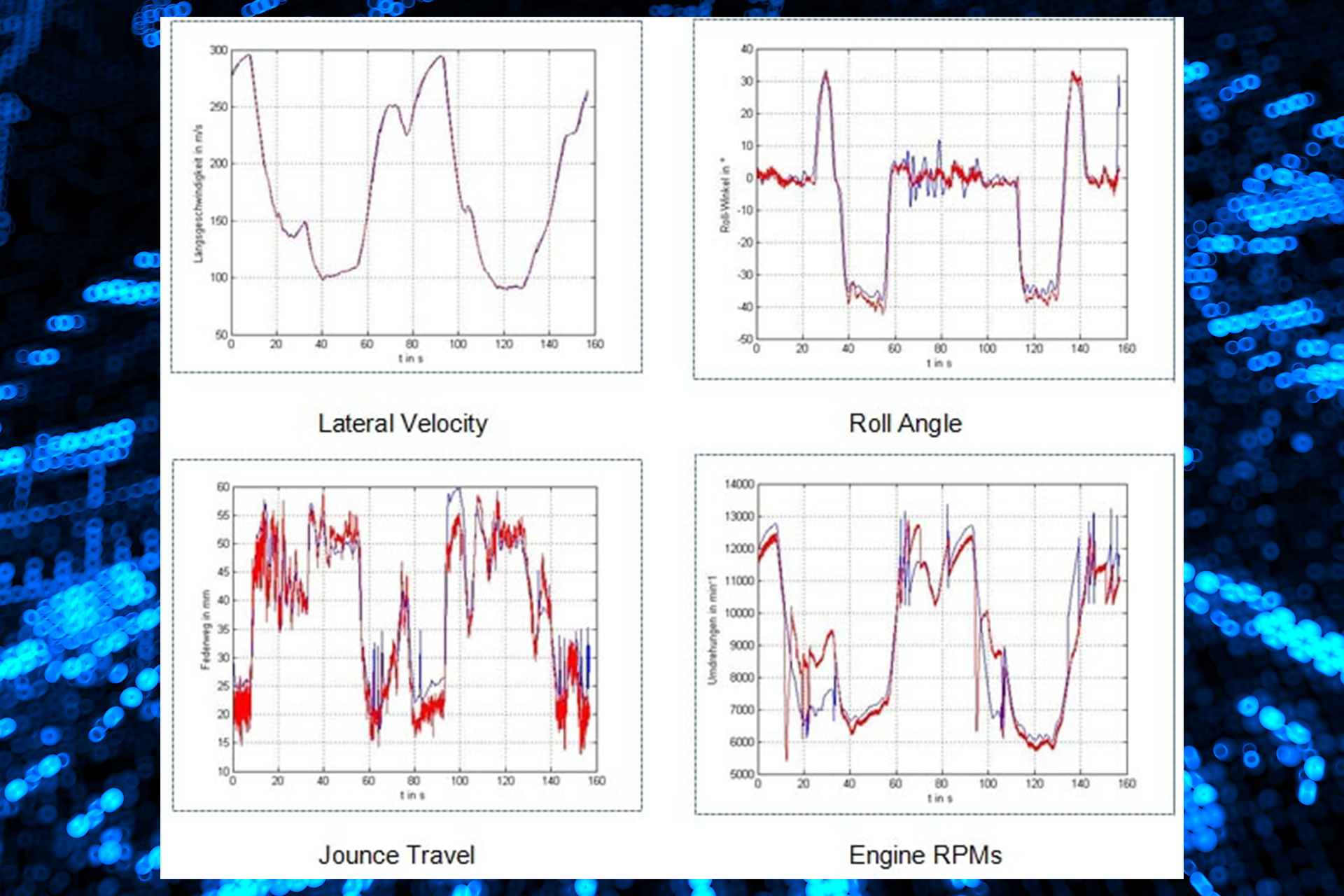

- Built-in postprocessing environment for live animation and plotting
- Moveable rider mass option to accurately define instantaneous roll axis
- Multiple options for tire models, like VI-Tire Motorcycle and MF-Tyre 6.2
- Model divided in subsystems (frame, front suspension, rear suspension, tires, brakes, gears, aerodynamics and powertrain) to easily handle all input parameters
- Automatic model export from VI-Motorcycle
- Real-time environment for the simulation of high-performance and production motorcycles and scooters
Benefits
- Possibility of taking design decisions in the shortest time possible at minimum cost
- No need to validate the models derived from detailed VI-Motorcycle assemblies
- Possibility of increasing the number of design variations to be studied
- Motorcycle behavior can be investigated in real-time
